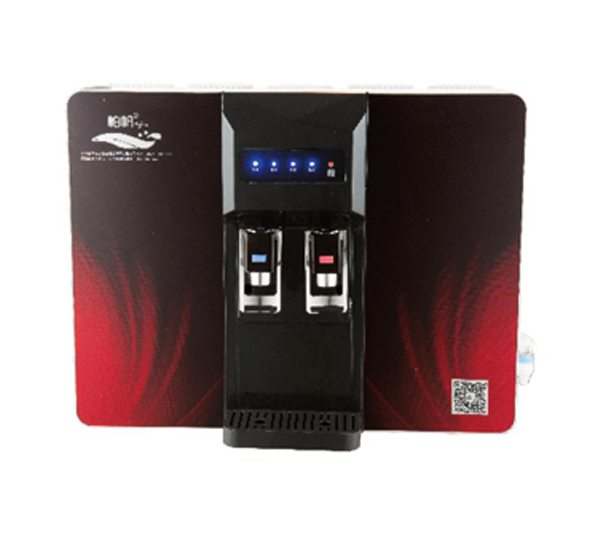

BF-WD / BF-PL · Water solutions
Drinking water at the point of use.
The range starts with the hot-and-cold countertop dispenser and runs up through the cabinet purifiers to the 1200 GPD ejector body. Every unit uses a reverse-osmosis membrane; the cabinet models add a pressure tank and a matching faucet, and the 600 and 900 G models take an IoT module as a factory option. Pipeline machines are supplied without a membrane, for pairing with a purifier installed elsewhere.
What you get
- Countertop hot-and-cold, cabinet purifiers and pipeline machines
- 100, 600, 900 and 1200 GPD membrane options
- 3.2 G or 6 G pressure tank on the cabinet models
- IoT module as a factory option on the compact and 900 G units
- One-year replacement on manufacturing defects
Specification
- Membrane
- 100, 600, 900 or 1200 GPD, depending on model
- Configuration
- Countertop dispenser, cabinet purifier or pipeline machine
- Tank
- 3.2 G or 6 G pressure tank on the cabinet models
- Faucet
- 2-way, 3-way or top-draw, depending on model
- IoT option
- Factory-fitted on the compact and 900 G models
- Packing
- Export carton; container load confirmed per order
- Warranty
- One-year replacement on manufacturing defects
- Customs
- HS code and declaration documents issued per shipment
Models
| Model | Capacity | Configuration | Storage | Control |
|---|---|---|---|---|
| BF-WD-HC100 | 100 GPD | Hot and cold, countertop | — | — |
| BF-WD-VOICE100 | 100 GPD | Voice prompt, white shell | — | — |
| BF-WD-VOICE100G | 100 GPD | Voice prompt, gold shell | — | — |
| BF-WD-DUST100 | 100 GPD | Dust-proof cabinet | 6 G tank | 4-way faucet |
| BF-WD-5T100 | 100 GPD | Five-tank cabinet | 6 G tank | 4-way faucet |
| BF-WD-3D100 | 100 GPD | 3D cabinet | 3.2 G tank | 4-way faucet |
| BF-WD-CANNON100 | 100 GPD | Compact cabinet | Kettle or tank | — |
| BF-WD-CANNON100I | 100 GPD | Compact cabinet, IoT | Kettle or tank | IoT module |
| BF-WD-600WY | 600 GPD | Main unit WY | — | Double-outlet faucet |
| BF-WD-600STAR | 600 GPD | Main unit Star | — | 3-way faucet |
| BF-WD-600TOP | 600 GPD | Main unit Top | — | Top-draw faucet |
| BF-WD-900 | 900 GPD | Ejector body | — | 2-way single faucet |
| BF-WD-900I | 900 GPD | Ejector body, IoT | — | 2-way single, IoT |
| BF-WD-1200 | 1200 GPD | Ejector body | — | 2-way double or 3-way single |
| BF-BFZF | — | Thermostatic pipeline machine | — | — |
| BF-BFWY | — | Thermostatic pipeline machine | — | — |
Figures are indicative and depend on site conditions. Request the current datasheet and test report before specifying.
Where it goes
Quote request
Enquire about BF-WD / BF-PL
Attach nothing here — send the site details and we will ask for the drawings if we need them.
